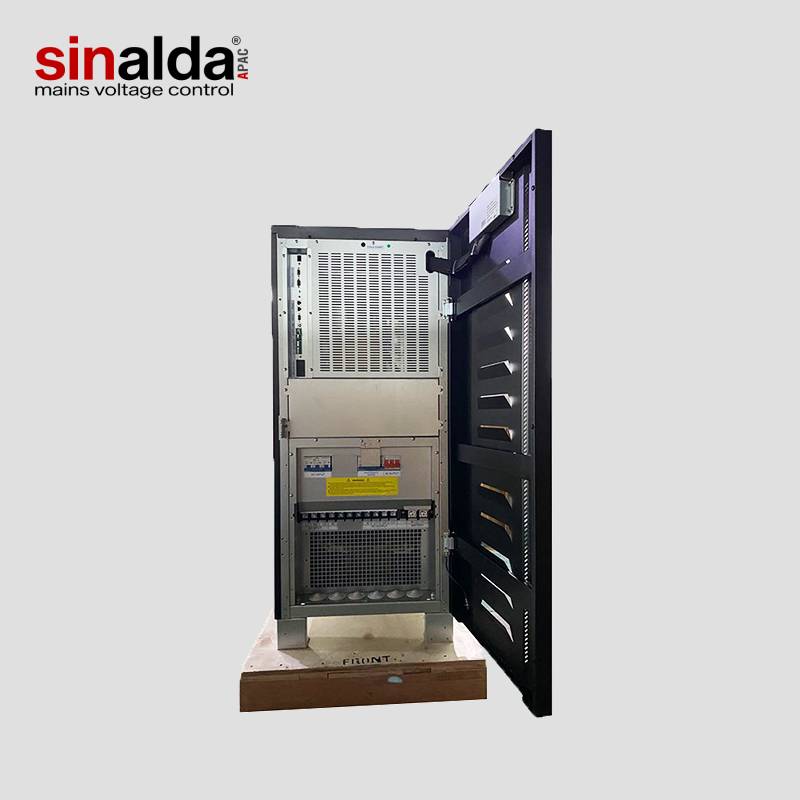

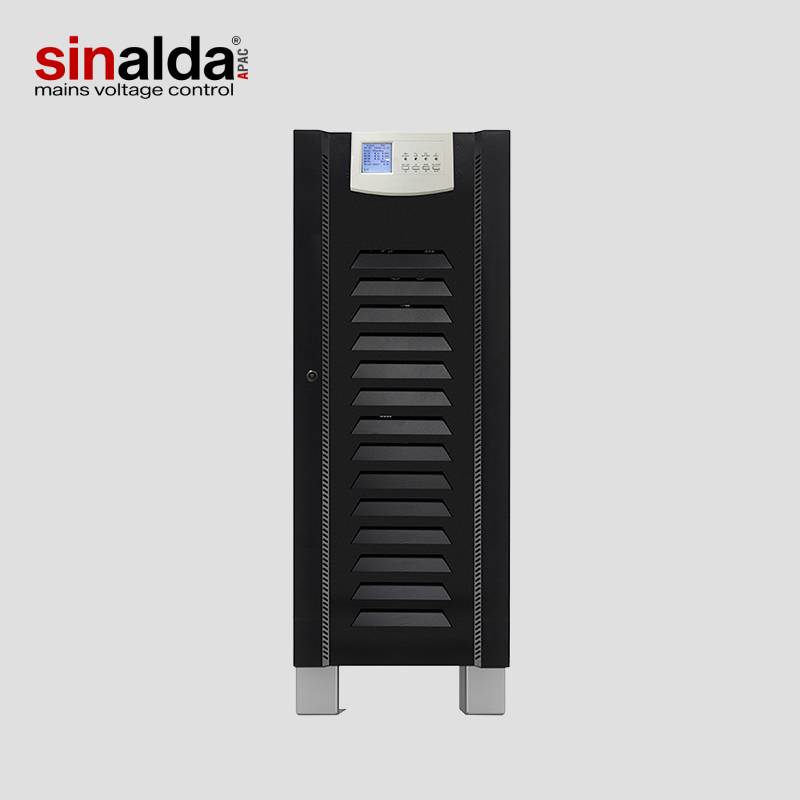

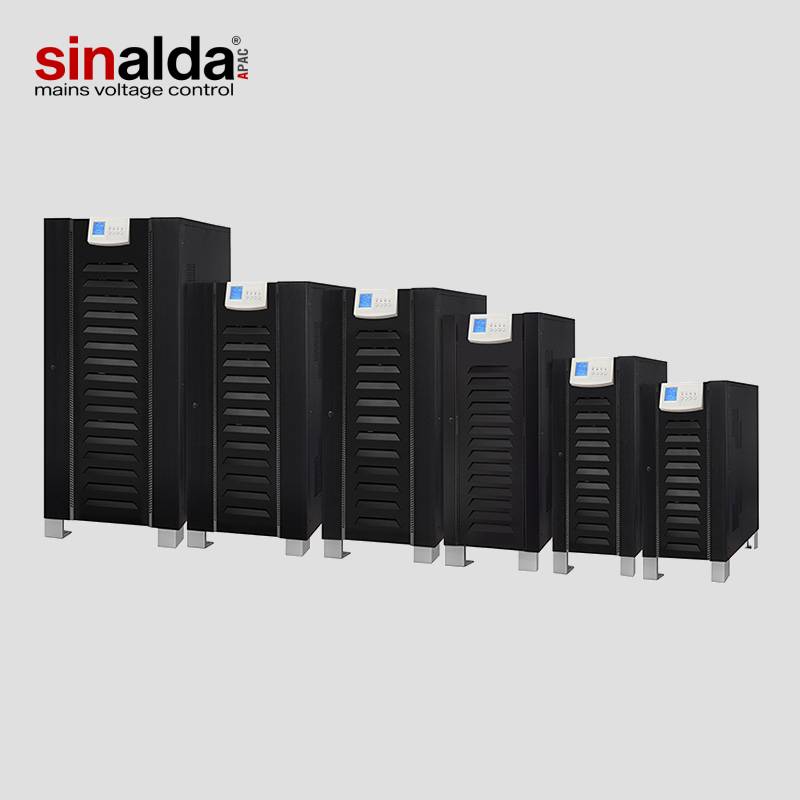

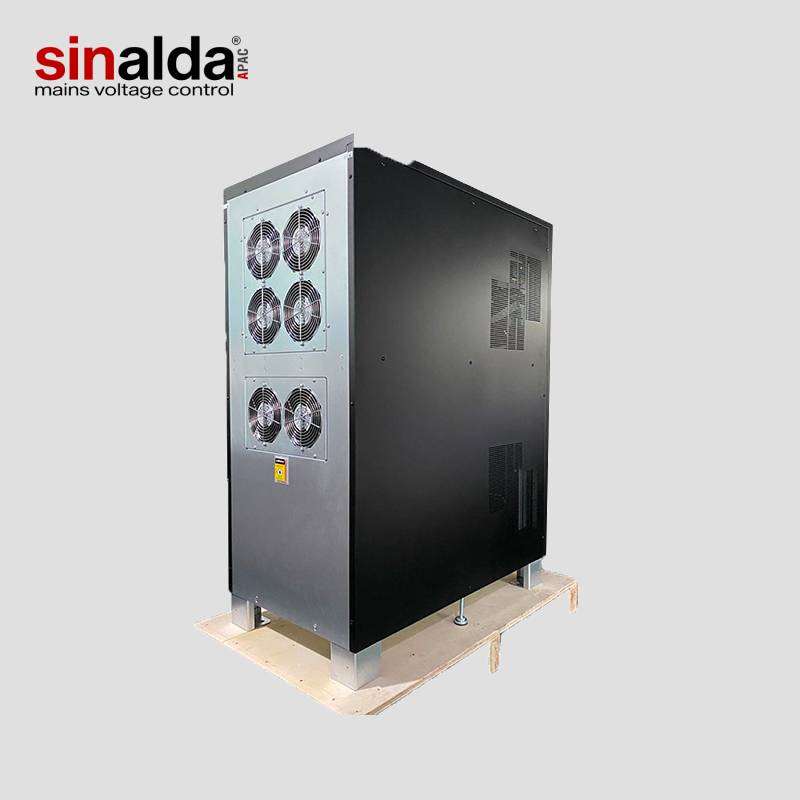

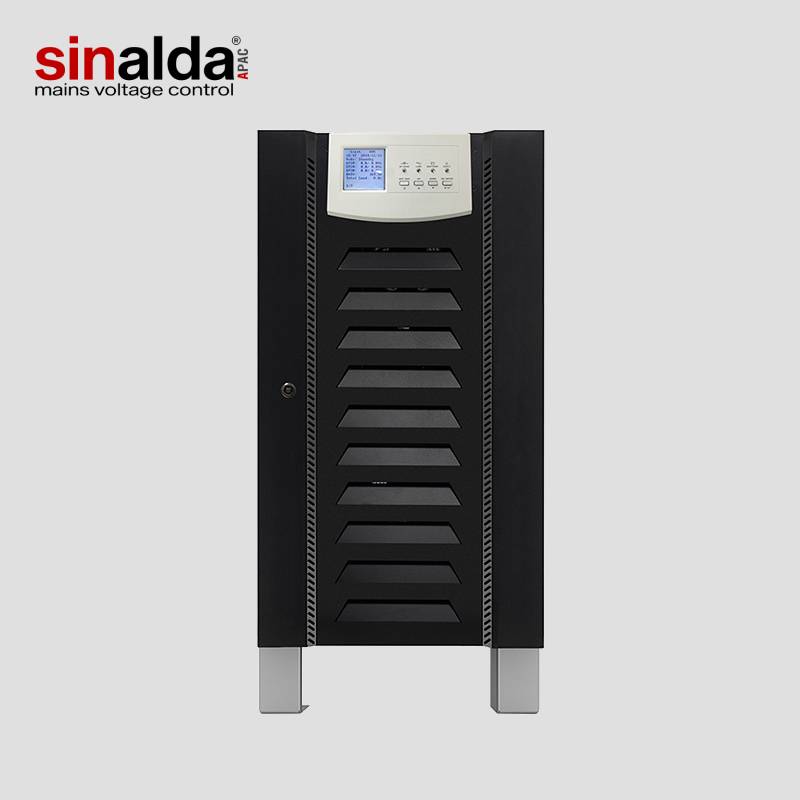

Product: Sinalda TLF Three Phase Low Frequency UPS
Model: TLF (10kVA-600kVA)
Input Voltage: 3 x 380VAC (3Phase + N) (Can Customize)
Input Range: 285V-475VAC
Output Voltage: 3 x 380VAC (3Phase + N) (Can Customize)
Output Accuracy: ±1%
Phase: Three Phase
The TLF series is a fully digital, DSP-controlled online double-conversion three-phase industrial UPS. Equipped with an integrated isolation transformer, our low-frequency online UPS effectively eliminates common-mode noise and reduces the need for costly dedicated circuits. It delivers always-on, galvanically isolated power to protect critical equipment reliably.
Contact us for details.
|
No |
Model |
Power Rating |
Description |
Product Size (mm) |
Gross Weight (KG) |
|
1 |
TLF-10K |
8KW |
Input Voltage： |
656×405×817 |
135 |
|
2 |
TLF-15K |
12KW |
137 |
||
|
3 |
TLF-20K |
16KW |
150 |
||
|
4 |
TLF-30K |
24KW |
656×405×941 |
211 |
|
|
5 |
TLF-40K |
32KW |
821×432×1159 |
276 |
|
|
6 |
TLF-60K |
48KW |
317 |
||
|
7 |
TLF-80K |
64KW |
975×554×1286 |
429 |
|
|
8 |
TLF-100K |
80KW |
577 |
||
|
9 |
TLF-120K |
96KW |
975×554×1326 |
650 |
|
|
10 |
TLF-160K |
128KW |
1051×705×1376 |
785 |
|
|
11 |
TLF-200K |
160KW |
840 |
||
|
1. The above Sizes and Weights are our standard type for your information. |
|||||
|
2. Customized products may have different sizes and weights. |
|||||
|
3. Product specifications are subject to change without further notice. |
|||||
