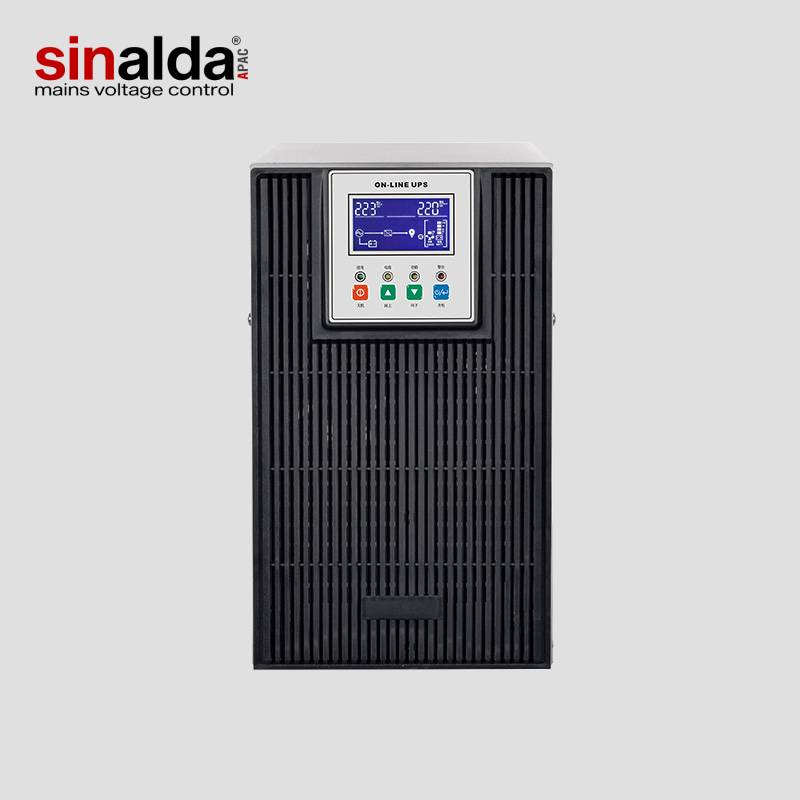

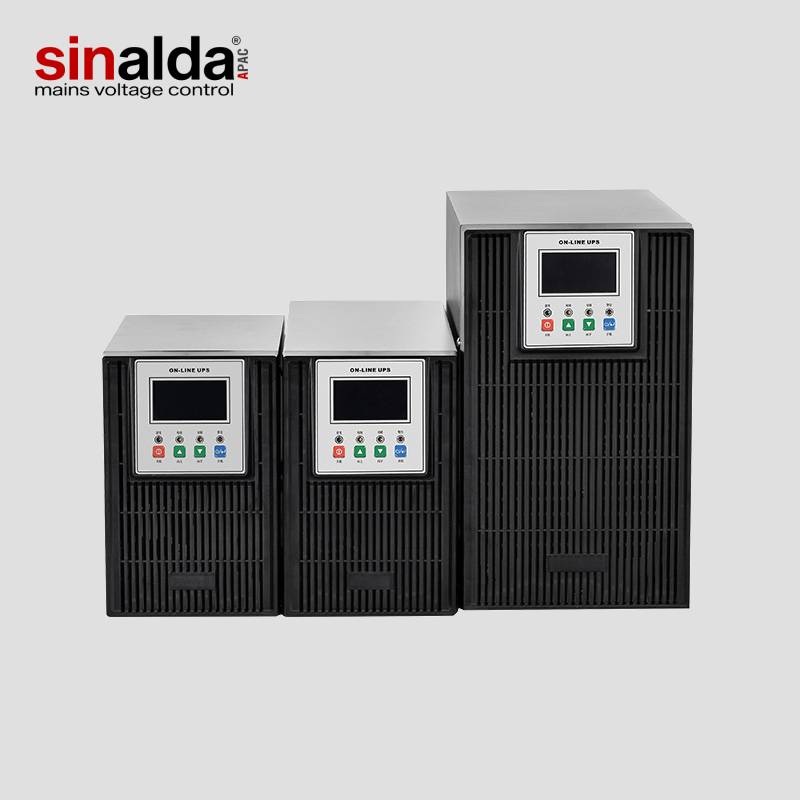

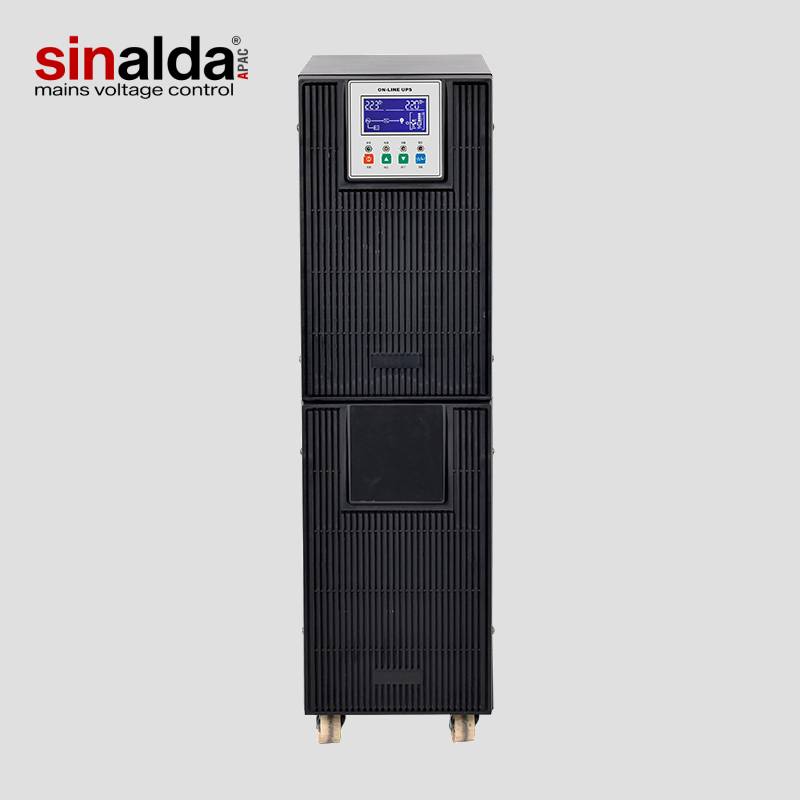

Product: Sinalda IHF Single Phase High Frequency UPS
Model: IHF (1kVA-10kVA)
Input Voltage: 1 x 220VAC (1Phase + N) (Can Customize)
Input Range: 110-300 VAC (Based on load at 50%)
Output Voltage: 1 x 220VAC (1Phase + N) (Can Customize)
Output Accuracy: ±1%
Phase: Single Phase
The High-Frequency IHF Online Series is a highly adaptable and flexibly configurable product designed with a double-conversion, pure online architecture. This architecture represents the most effective solution for addressing various power supply challenges. It effectively mitigates issues such as power outages, mains voltage overvoltage or undervoltage, instant voltage drops, amplitude oscillations, high-voltage spikes, voltage fluctuations, surges, harmonic distortion, interference and frequency fluctuations.
The series ensures reliable and safe power delivery to connected loads by providing robust ground power supply guarantees. It incorporates advanced DSP digital control technology to enhance product performance and system reliability, while achieving higher power density and compact, integrated design.
To fully meet diverse user requirements, the IHF Series 1K-20K offers a comprehensive range of scalable features, allowing users to customize and configure the system according to their specific needs.
|
Single Phase High Frequency 1-30KVA Online UPS (Transformer-less) |
||||||||||
|
Model |
IHF-1101 |
IHF-1102 |
IHF-1103 |
IHF-1106 |
IHF-1110 |
IHF-3110 |
IHF-3115 |
IHF-3120 |
IHF-3130 |
|
|
Power Rating |
1KVA/800W |
2KVA/1.6KW |
3KVA/2.4KW |
6KVA/4.8KW |
10KVA/8KW |
10KVA/8KW |
15KVA/12KW |
20KVA/16KW |
30KVA/24KW |
|
|
Phase |
Single Phase Input, Single Phase Output |
Three Phase Input, Single Phase Output |
||||||||
|
Input |
||||||||||
|
Voltage Range |
115-276VAC |
210-487VAC |
||||||||
|
Frequency Range |
47~53Hz or 57~63Hz |
|||||||||
|
Factor |
0.99@ Rated voltage (100% load) |
|||||||||
|
Output |
||||||||||
|
Output Voltage |
208/220/230VAC/240V±1% |
|||||||||
|
Frequency Range |
Synchronization with input (mains mode)50Hz±01Hz or 60Hz±01Hz (battery mode) |
|||||||||
|
Power Factor |
0.8 |
|||||||||
|
Transfer Time |
0ms |
|||||||||
|
Output Waveform |
pure sine wave |
|||||||||
|
Over-load Ability |
In the mains state, load <110%,30 minutes,110%, load <130%, 5 minutes,130%, load <10s |
|||||||||
|
Battery |
||||||||||
|
Long-run Machine |
DC Volt |
36VDC |
72VDC |
96VDC |
192VDC |
16pcs（16-20pcs optional） |
||||
|
Size |
145*282*220 |
145*397*220 |
190*415*318 |
190*442*318 |
250*592*576 |
250*815*826 |
||||
|
Environment |
||||||||||
|
Humidity |
0-90% (no condensation) |
|||||||||
|
Noise |
Less Than 45dB@ 1 Meter |
|||||||||
|
Control Management |
||||||||||
|
Smart RS-232 Optional USB |
Support Windows ®2000/2003XP/Vista/2008,Windows ®/8,Linux.Unix,and MAC |
|||||||||
|
SNMP (Optional) |
Power management Supports SNMP management and network management |
|||||||||
|
No |
Model |
Power Rating |
DC Votlage |
Product Size (mm) |
Net Weight (KG) |
|
Single Phase Input and Single Phase Output (Tower Type) |
|||||
|
1 |
IHF-1101 |
1KVA/0.8KW |
24VDC |
295*145*225 |
3.68 |
|
2 |
IHF-1101L |
1KVA/0.8KW |
36VDC |
7.98 |
|
|
3 |
IHF-1102 |
2KVA/1.6KW |
48VDC |
405*145*225 |
13.7 |
|
4 |
IHF-1102L |
2KVA/1.6KW |
72VDC |
6.35 |
|
|
5 |
IHF-1103 |
3KVA/2.4KW |
72VDC |
415*192*328 |
21.6 |
|
6 |
IHF-1103L |
3KVA/2.4KW |
96VDC |
405*145*225 |
5.85 |
|
7 |
IHF-1106 |
6KVA/4.8KW |
192VDC |
415*192*328 |
42.1 |
|
8 |
IHF-1106L |
6KVA/4.8KW |
192VDC |
490*190*688 |
8.83 |
|
9 |
IHF-1110 |
10KVA/8KW |
192VDC |
415*192*328 |
51.8 |
|
10 |
IHF-1110L |
10KVA/8KW |
192VDC |
490*190*688 |
7.98 |
|
Single Phase Input and Single Phase Output (Rackmount Type) |
|||||
|
1 |
IHF-1101-RM |
1KVA/0.8/1KW |
24VDC |
400*440*88 |
11.2 |
|
2 |
IHF-1101L-RM |
1KVA/0.8/1KW |
36VDC |
440*325*88 |
6.8 |
|
3 |
IHF-1102-RM |
2KVA/1.6/2KW |
48VDC |
440*405*88 |
17.05 |
|
4 |
IHF-1102L-RM |
2KVA/1.6/2KW |
72VDC |
440*395*88 |
7.62 |
|
5 |
IHF-1103-RM |
3KVA/2.4/3KW |
72VDC |
440*405*88 |
18.05 |
|
6 |
IHF-1103L-RM |
3KVA/2.4/3KW |
96VDC |
440*395*88 |
7.95 |
|
7 |
IHF-1106L-RM |
6KVA/4.8/6KW |
192VDC |
440*405*88 |
9.75 |
|
8 |
IHF-1110L-RM |
10KVA/8/10KW |
192VDC |
10.74 |
|
|
1. The above Sizes and Weights are our standard type for your information. |
|||||
|
2. Customized products may have different sizes and weights. |
|||||
|
3. Product specifications are subject to change without further notice. |
|||||
